28m Telescopic Boom Lift
Features
- Maximum straight-line outreach
- 4WD — rough terrain capable
- Low hour, late model
- Certified & regularly serviced
- Daily, weekly & long-term hire
- Auckland-wide delivery
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

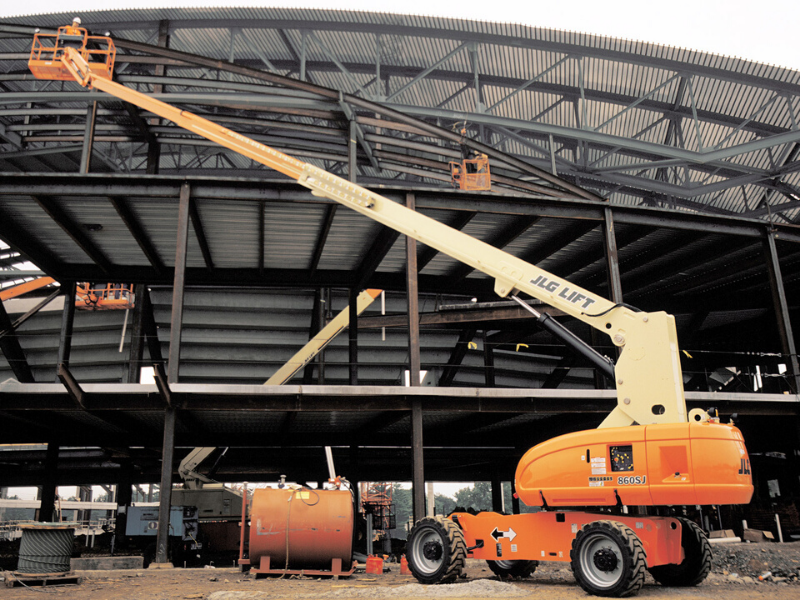

28m JLG 860SJ Telescopic boom
This boom is for big commercial sites or when you need a large horizontal and vertical reach to do your job. These large telescopic booms are used by structural steel workers, roofers and bridge builders. They are also common at the end of a job building high rise appartments and office blocks for installing windows and cladding.
| Platform Height | 26.21 m |
|---|---|
| Working Height | 28.21 m |
| Horizontal Outreach | 22.86 m |
| Horizontal Jib Rotation | 0 Degrees |
| Machine Weight | 17200 kg |
| Ground Bearing Pressure | 5.69 Kg/cm2 |
| Ground Clearance | 0.3 m |
| Machine Height | 3.05 m |
| Machine Length | 12.19 m |
| Machine Width | 2.49 m |
| Platform Dimension A | 0.91 m |
| Platform Dimension B | 2.44 m |
| Tailswing | 1.42 m |
Hire a 28m working height telescopic boom lift in Auckland — 23m outreach for high-rise cladding, steel and roofing. Delivery available. Call 0800 467 009.
The 28m telescopic boom is for big commercial sites — when the work is genuinely high or a long way out from where the machine can stand. Our JLG 860SJ reaches a 28.2 m working height (26.2 m platform) with a huge 22.9 m of horizontal outreach, putting two workers and tools almost anywhere on a mid-rise face.
These machines are the tool of choice for structural steel crews, roofers and bridge builders, and they’re a familiar sight at the end of high-rise apartment and office projects installing windows and cladding. Plan for the machine’s size: at over 12 m long and 17 tonnes it needs proper access and hardstanding, and it travels by heavy transporter. If 22m of working height covers you, the smaller class is cheaper to run and move; for the extreme jobs, our 38m boom goes higher again.
We deliver across Auckland and can advise on site set-up. Call 0800 467 009 to plan the lift.
