22m Telescopic Boom Lift
Features
- Maximum straight-line outreach
- 4WD — rough terrain capable
- Low hour, late model
- Certified & regularly serviced
- Daily, weekly & long-term hire
- Auckland-wide delivery
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

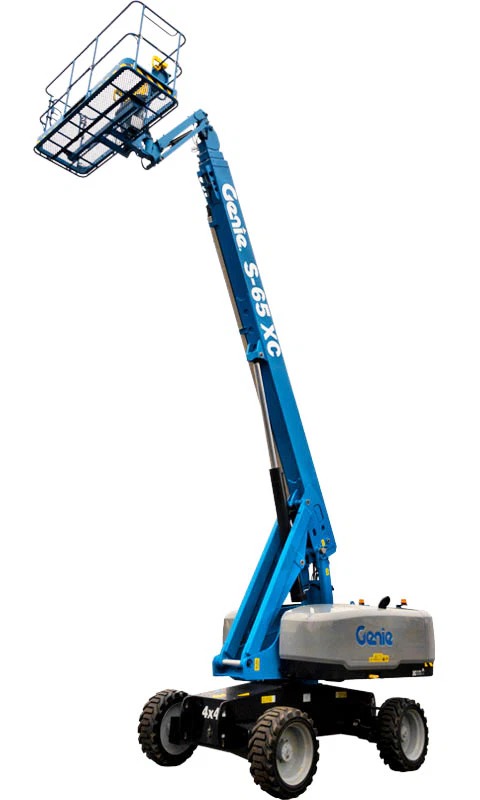

20m Genie S-65XC Telescopic Boom Lift
The Genie S-65XC can perform a wider range of heavier lift tasks on construction and industrial job sites thanks to dual lift capacity and innovative features that help increase job site efficiency.
| Operating Weight | 11,412kg |
|---|---|
| Machine Dimensions | L 9760mm x W 2490mm x H 2810mm |
| Work height | 21.81m |
| Raised Platform Height | 19.81m |
| Maximum Horizontal reach | 16.51m |
| Number of persons | 3 |
| Weight Capacity | 454kg |
| Gradeability - Stowed | 45% |
| Drive Speed Stowed | 4.80 km/h |
| Drive Speed Raised | 1.08 km/h |

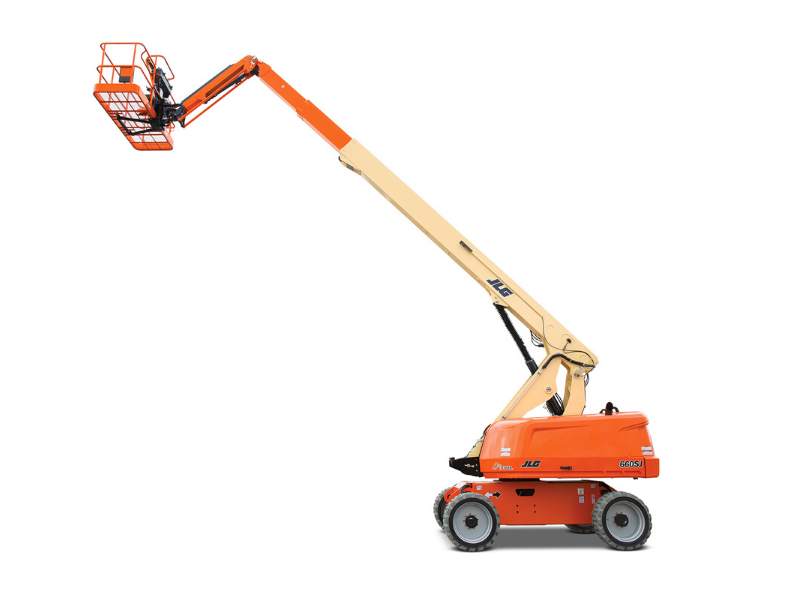

22m JLG 660SJ Telescopic boom
This machine is perfect for horizontal reach at height. Structural steel contractors, prefab concrete panel erectors, bridge builders etc use these machines on commercial and industrial jobs. 4WD all terrain tyres are and powerful diesel engine get you where you need.
| Platform Height | 20.32m |
|---|---|
| Working Height | 22.32 m |
| Weight | 12,900 kg |
| Diesel Tank Capacity | 151 L |
| Horizontal Outreach | 17.30 m |
| Swing | 360 Degrees Continuous |
| Platform Capacity | 230 kg |
| Platform Size | 0.91 x 2.44 m |
| Jib Length | 1.83 m |
| Jib Range of Articulation | 130 Degrees (+70, -60) |
| Drive Speed | 6.8 km/h |
Hire a 22m working height telescopic boom lift in Auckland — up to 17m outreach for steel, precast and bridge work. Delivery available. Call 0800 467 009.
At 22m working height, telescopic booms move into true commercial territory — structural steel erection, precast panel work, bridge building and multi-level exteriors. This class is all about horizontal reach at height: our JLG 660SJ stretches 17.3 m out, and the Genie S-65XC reaches 16.5 m with a dual lift capacity of up to 454 kg for heavier crews and gear.
Both are diesel 4WD machines with continuous 360-degree swing and all-terrain capability, so they position confidently on construction ground. The S-65XC (21.8 m working height) suits heavier-lift tasks; the 660SJ (22.3 m) adds an articulating jib for fine platform placement. If the job sits behind or above obstructions, our 21m articulating boom trades some outreach for up-and-over geometry; for high-rise faces, the 28m and 38m classes carry on up.
Delivered by transporter anywhere in Auckland. Call 0800 467 009 to spec the right boom for your reach and load.
