16m Telescopic Boom Lift
Features
- Maximum straight-line outreach
- 4WD — rough terrain capable
- Low hour, late model
- Certified & regularly serviced
- Daily, weekly & long-term hire
- Auckland-wide delivery
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

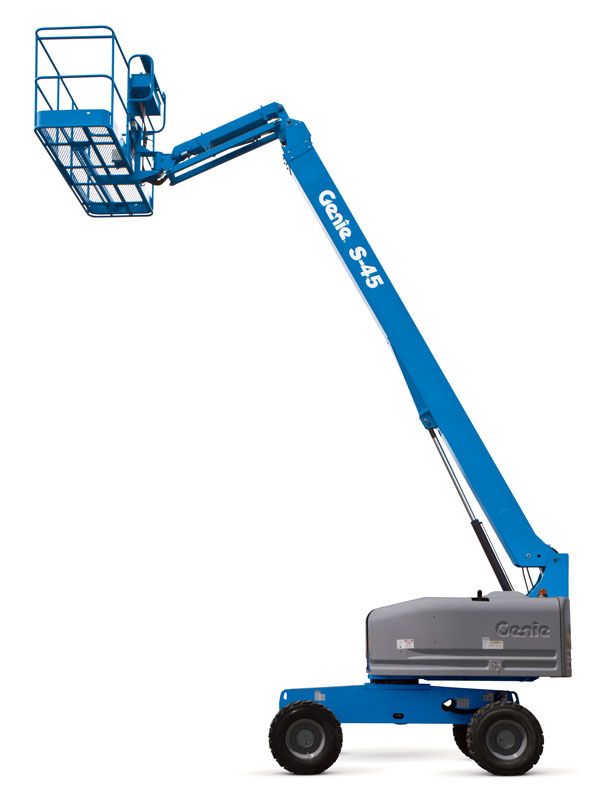

15m Genie S45 Telescopic boom
The Genie S-45 has a working height of 15.72 m and a platform height of 13.72 m. This telescopic boom increases productivity with the traction and drive speed needed to get around job sites and work areas. These units are designed to easily manoeuvre in tight spaces on construction and industrial sites.
| Operating Weight | 6926 kg |
|---|---|
| Machine Dimensions | L 8480 mm x W 2300 mm x H 2490 mm |
| Work height | 15720 mm |
| Raised Platform Height | 13720 mm |
| Number of persons | 2 |
| Turning radius outside | 4780 mm |
| Drive Speed Stowed | 7.7 km/h |
| Drive Speed Raised | 1.1 km/h |
| Carrying Capacity | 227 kg |

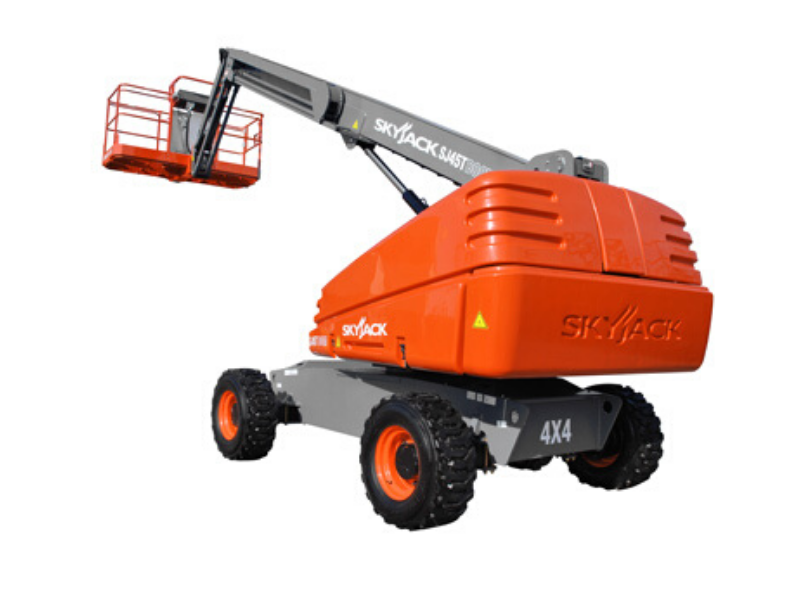

15m SkyJack SJ45T Telescopic Boom
The Skyjack SJ45T is designed for versatility. It’s a productive machine ideal for both construction and industrial applications. The Skyjack SJ45T offers superior terrainability due to Skyjack’s axle based 4WD system. Other competitive advantages include an innovative and intuitive direction sensing drive and steer control system which ensures the boom lift will always drive and steer with respect to the operator rather than the orientation of the chassis.
| Operating Weight | 6727 kg |
|---|---|
| Work Height | 15.60 m |
| Platform Height | 13.77 m |
| Horizontal Reach | 12.12 m |
| Weight Capacity | 227 kg |
| Number of persons | 2 |
| Platform Size | 0.91 m x 2.44 m |
| Tail-swing Radius | 0.94 m |
| Drive Speed (Stowed) | 7.2 km/h |
| Drive Speed (Raised) | 0.8 km/h |
| Fuel Capacity | 170 L |
Hire a 16m working height telescopic boom lift in Auckland — 4WD straight booms with up to 12m outreach for site work. Delivery available. Call 0800 467 009.
The 16m telescopic (straight) boom is the everyday site access machine — around 15.6–16 m of working height with up to 12 m of horizontal outreach, letting you park in one spot and cover a big workface. Straight booms excel where the job is reach: structural steel, cladding and roofing edges, gluelam and truss work, and maintenance across gaps or obstructions at ground level.
We run the Genie S-45 and Skyjack SJ45T in this class — both diesel 4WD units built for real site ground, with 360-degree swing and two-person platforms. The Skyjack’s direction-sensing controls always drive relative to the operator, not the chassis. Need to get up and over an obstacle instead of reaching past it? That’s our articulating boom classes. Need more reach? Step up to 22m.
Delivery is available across Auckland by transporter. Call 0800 467 009 for help matching boom geometry to your job.
