17–18m Telehandler
Features
- Reach & lift right across site
- 4WD — rough terrain capable
- Forks, bucket & jib available
- Low hour, late model
- Certified & regularly serviced
- Auckland-wide delivery
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

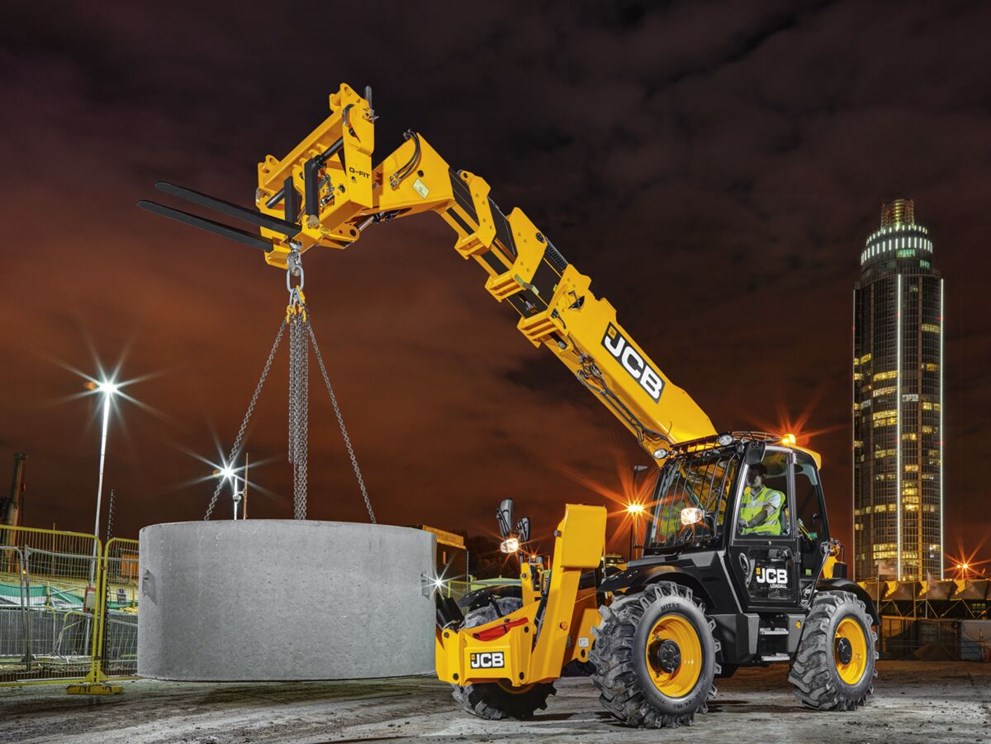

18m /4T JCB 540-180 Telehandler
Boost productivity on multi-storey builds, civil sites and infrastructure projects with Equipt’s JCB 540-180 Hi-Viz telehandler—an 18-metre machine that lifts 4 000 kg (2 500 kg at its full 17.5 m height) and reaches 13.34 m forward for safe placement of pallets, formwork, site sheds and bulk materials well beyond a forklift’s range. A low-profile four-piece boom and Hi-Viz chassis slash blind spots, while fuel-efficient Stage V DieselMAX engines—55 kW with no AdBlue or 81 kW with compact SCR/DPF/DOC—drive a smooth four-speed powershift, permanent 4WD and tight 3.75 m turning radius that conquers steep subdivisions, muddy haul roads and cramped CBD projects. The 110 L/min variflow pump delivers rapid cycles, load-sensing auxiliaries power forks, buckets, hooks or an AS 2550-compliant work platform, and operators stay comfortable in a ROPS/FOPS cab with suspension seat, climate control, Bluetooth radio and LiveLink™ telematics. Hire from Equipt for free same-day Auckland delivery on attachments up to 500 kg, a two-hour rapid-response breakdown promise and the backing of a family-run Kiwi team who know heavy—call 0800 467 009 or email info@equipt.co.nz for an instant quote and competitive rates across the North Island.
| Maximum lift capacity | 4 000 kg |
|---|---|
| Maximum lift height | 17.51 m |
| Maximum forward reach | 13.34 m |
| Capacity at full height | 2 500 kg |
| Capacity at full reach | 550 kg |
| Operating weight | 11 380 kg (with forks) |
| Engine options | 55 kW (74 hp) or 81 kW (109 hp) JCB Stage V DieselMAX |
| Hydraulic pump | 110 L/min @ 260 bar |
| Overall dimensions (L × W × H) | 6.27 m × 2.35 m × 2.59 m |
| Turning radius (over tyres) | 3.75 m |
| Travel speed (4-spd powershift) | 29 km/h standard; 33 km/h optional high-speed |

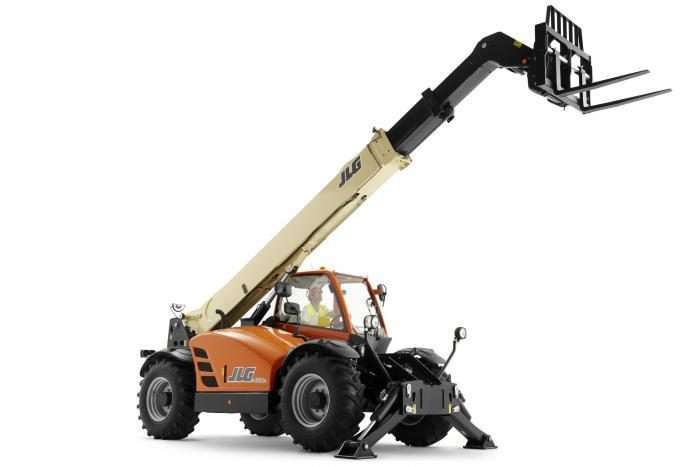

16/18m JLG 4017PS Telehandler
Telehandlers are ideal for outdoor jobs which require four-wheel-drive traction. We also have a variety of sizes available, please enquire today.
| Operating Weight | 12310 kg |
|---|---|
| Machine Dimensions | L (less forks) 6670 mm x W 2440 mm x H 2800 mm |
| Maximum Lift Height | 15200 - 17400 mm |
| Maximum Lift Capacity | 4000 kg |
| Maximum Forward Reach | 12700 mm |
| Capacity at Maximum Height | 1000 kg |
| Capacity at Maximum Reach | 500 kg |
| Maximum Travel Speed | 32 km/h |
| Fuel Capacity | 140 L |
Hire a 17–18m / 4T telehandler in Auckland for multi-storey builds, civil sites and high placement work. Delivery available. Call 0800 467 009.
Seventeen to eighteen metres of lift height puts materials onto fifth-storey scaffolds and deep into structures — the working range of multi-storey residential builds, commercial projects and infrastructure work. Both machines in this class lift 4,000 kg and reach around 12.7–13.3 m forward, safely placing pallets, formwork, site sheds and bulk materials far beyond a crane-truck’s convenience or a forklift’s range.
Choose from the JLG 4017PS (17.4 m max lift) or the JCB 540-180 Hi-Viz (17.5 m), whose low-profile boom and Hi-Viz chassis cut blind spots and whose fuel-efficient Stage V engines, permanent 4WD and tight 3.75 m turning radius handle steep subdivisions, muddy haul roads and cramped CBD sites. Load-sensing auxiliaries power forks, buckets, hooks or a compliant work platform. Need more capacity at height? See the 19.2m/6T Magni. More height? The 20m JCB.
Delivered by transporter across Auckland. Call 0800 467 009 for load charts and sizing advice.
