12T Padfoot Roller
Features
- Padfoot drum — cohesive soils
- High compaction force
- Low hour, late model
- Regularly serviced & maintained
- Daily, weekly & long-term hire
- Auckland-wide delivery
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

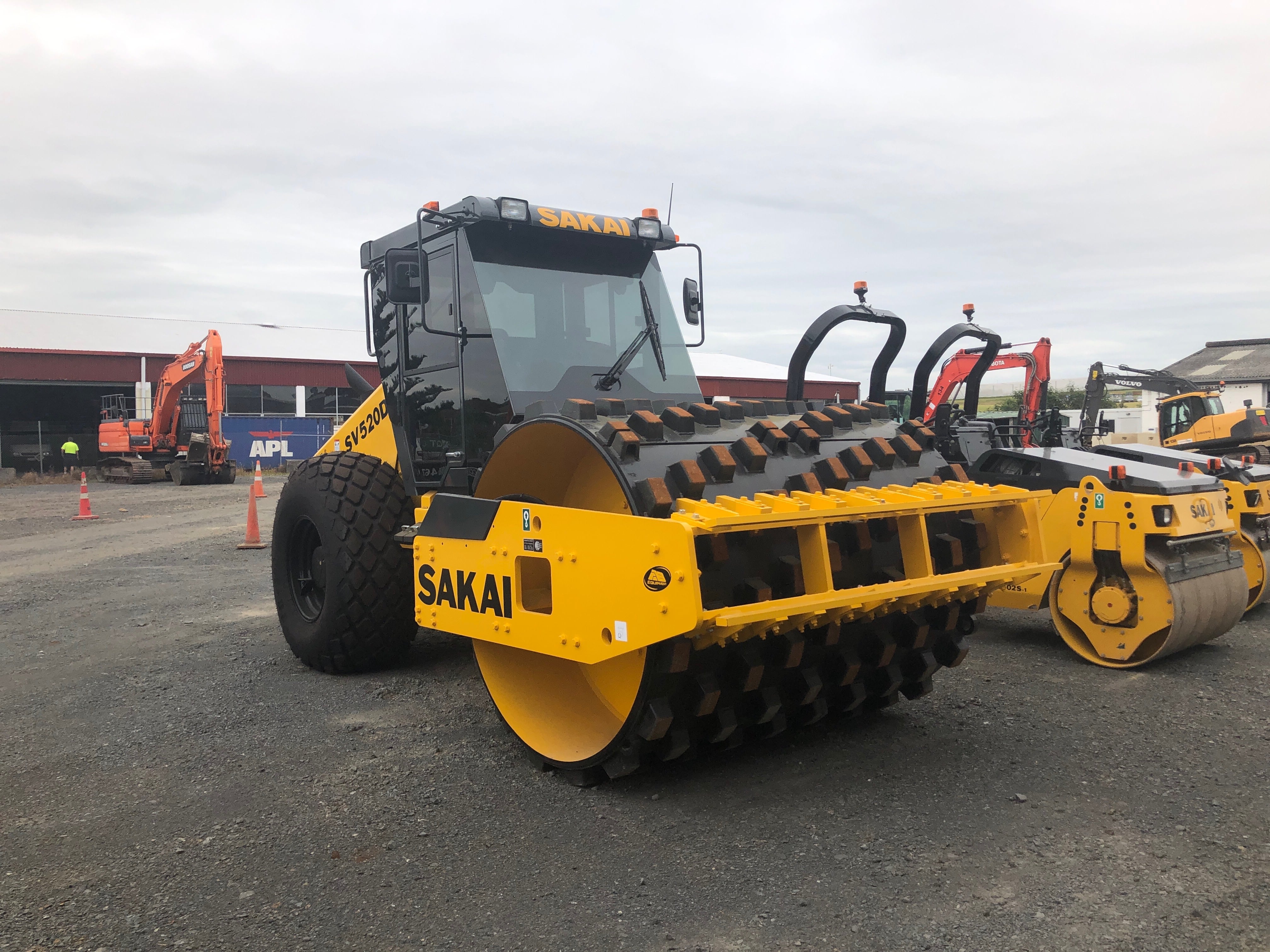

12T Sakai SV520DF Padfoot Roller
This 12T padfoot roller is designed for projects where you need to compact soil at greater depths. These rollers, also called sheepsfoot rollers, have tapered pads that penetrate and compact the soil to build up its strength. Gravity and vibration compact the material from the top down.
| Operating weight | 12680 kg |
|---|---|
| Overall width | 2295 mm |
| Height | 2890 mm |
| Length | 5840 mm |
| Drum width | 2130 mm |
| Centrifugal force low/high | 172 / 255 kN |
| Amplitude low/high | 0.73 / 1.50 mm |
Hire a 12 tonne padfoot roller in Auckland for bulk earthworks and deep compaction of clay fills on major projects. Delivery available. Call 0800 467 009.
When you’re placing engineered fill by the thousands of cubes, the 12T padfoot is the compaction machine the programme runs on. Also known as a sheepsfoot roller, its tapered pads penetrate each lift and compact cohesive soil from the bottom up — gravity and vibration doing the work that surface rollers can’t. This is the class for bulk earthworks, subdivision platforms, embankments and landfill capping in Auckland clay.
Our Sakai SV520DF puts up to 255 kN of centrifugal force through a 2130 mm drum, with dual amplitude to match lift thickness and material moisture. It pairs naturally with our 22–25T excavators and 9T site dumpers on production fill operations. For smaller trench and shoulder work the 5T or 7T padfoot is easier to manoeuvre, and for granular basecourse or final surfaces you’ll want the 12T smooth drum instead.
Delivery is available Auckland-wide by heavy transport. Call 0800 467 009 to line up the right compaction gear for your spec.
