9.6m Vertical Mast Lift
Features
- Fits through standard doorways
- Zero emissions — safe indoors
- Non-marking tyres
- Compact — tight access
- Low hour, late model
- Certified & regularly serviced
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

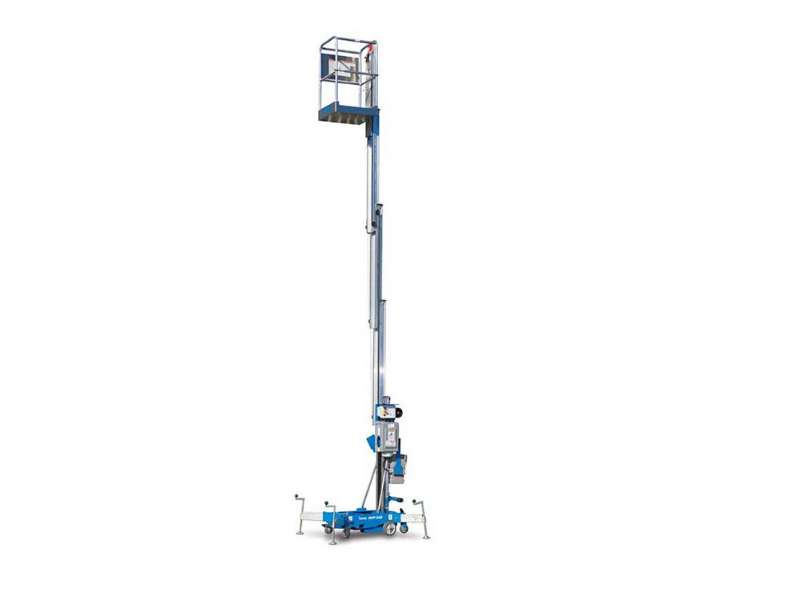

9.6m Genie AWP-25S Vertical Mast Lift
The Genie® AWP®-25S Super Series aerial work platform can be used in a variety of light-duty construction and maintenance applications. It is extremely lightweight, nimble and can fit in any elevator or maintenance lift. Perfect for when you need to work above 9m and you cant get access for a scissor lift. Its lightweight design makes it easy to load and transport in pickup trucks.
| Operating Weight | 330 kg |
|---|---|
| Work Height | 9.60 m |
| Platform Height | 7.6 m |
| Stowed Height / Length / Width | 1.98m x 1.31m x 0.74m |
| Outrigger Footprint | 1.55m x 1.35m |
| Platform Dimensions | 0.69/0.66/1.14 m |
| Weight Capacity | 159 kg |
| Number of persons | 1 |
| Tail-swing Radius | 0 mm |
Hire a 9.6m working height push-around vertical mast lift in Auckland — just 330kg, fits in a lift or ute. Delivery available. Call 0800 467 009.
At just 330 kg, the 9.6m push-around mast lift solves a specific problem: working above 9 m in places you can’t get a scissor lift. Our Genie AWP-25S fits in a standard passenger or goods lift, rolls through doorways at 740 mm wide, and can even be transported in a ute — then its outriggers set up in minutes for a 9.6 m working height (7.6 m platform).
That makes it the tool for light-duty construction and maintenance in multi-storey buildings, plant rooms, foyers and heritage spaces with sensitive floors — lighting, cabling, painting, fire systems and ceiling repairs. It carries one person and 159 kg. Being push-around, it’s positioned by hand and lifted on outriggers, so for frequent repositioning or two-person work a self-propelled scissor is more productive where access allows.
Delivery is available anywhere in Auckland. Call 0800 467 009 and we’ll help you figure out the smartest way to reach your work.
