3.5T Excavator
Features
- Tilt-Hitch
- Rubber Tracks
- Low hour, late model
- Other attachments available
- Zero tail swing
- 3 buckets included
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

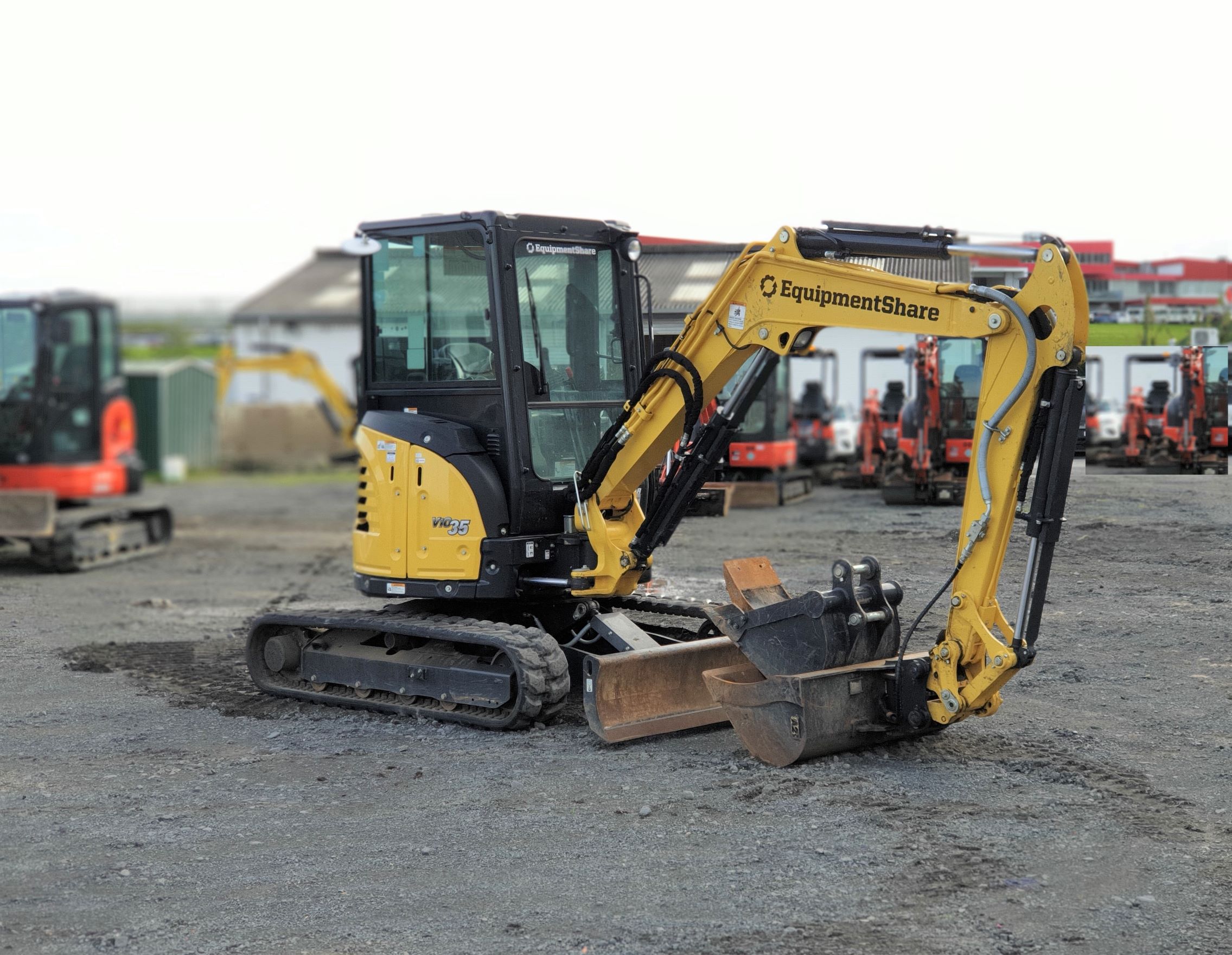

3.5T Excavator - Yanmar ViO35-6B
The Yanmar Vi035-6B is the most popular in the Vi0 series. It is ideal for work that requires flexibility and can be used in areas that would be inaccessible to larger excavators. This smart and user-friendly machine provides superior comfort, and it’s aimed at satisfying a variety of worksite environments. The “true” zero-tail-swing allows reaching in the tightest of places. The low fuel consumption and high efficiency make this one of Equipment Share’s most sought-after machines by professional operators.
| Operating Weight | 3825 kg |
|---|---|
| Machine Dimensions | L 4730 mm x W 1740 mm x H 2470 mm |
| Digging Force | 25.1 kn |
| Digging Depth | 3100 mm |
| Dumping Height | 3560 mm |
| Tail Swing Radius | Zero-tail-swing |
| Lifting Capacity | 740 kg @ 3.5 m radius over front blade down |
| Speed | 4.5 km/h |
| Fuel Capacity | 41 L |
| Ground Pressure | 34.0 k Pa |

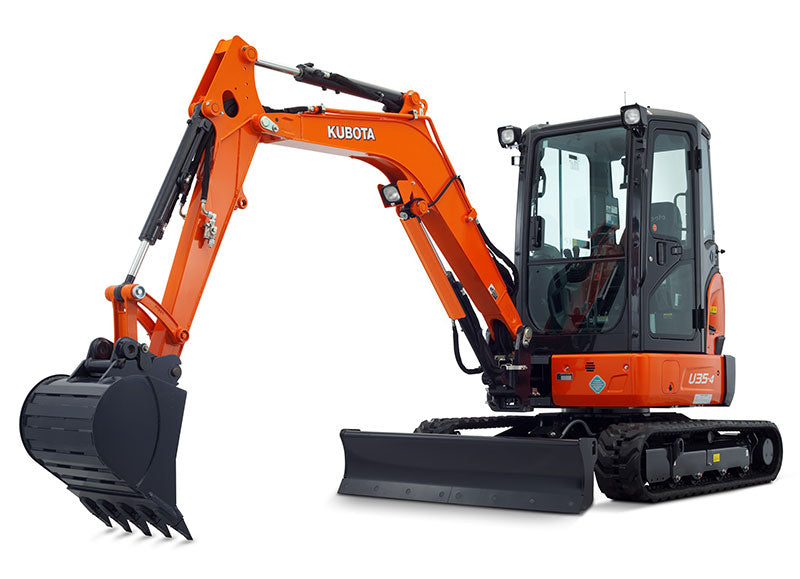

3.5T Excavator - Kubota U35-4
The Kubota U35-4 combines superior power and outstanding versatility to tackle demanding jobs in a variety of conditions. The Kubota U35-4 is a perfect machine for residential sites and smaller jobs that require flexibility and manoeuvrability. Handle any job with confidence with a Kubota U35-4.
| Operating Weight | 3830 kg |
|---|---|
| Machine Dimensions | L 4750 mm x W 1700 mm x H 2480 mm |
| Dumping Height | 3400 mm |
| Digging Depth | 3010 |
| Digging Force | 27 kn |
| Lifting Capacity | 560 kg @ 3.5 m radius over front blade down |
| Speed | 3.0 – 4.6 km/h |
| Fuel Capacity | 45 L |
| Ground Pressure | 34 k Pa |
Hire a 3.5 tonne excavator in Auckland — the residential earthworks workhorse for footings, drainage, pools and retaining walls. Call 0800 467 009.

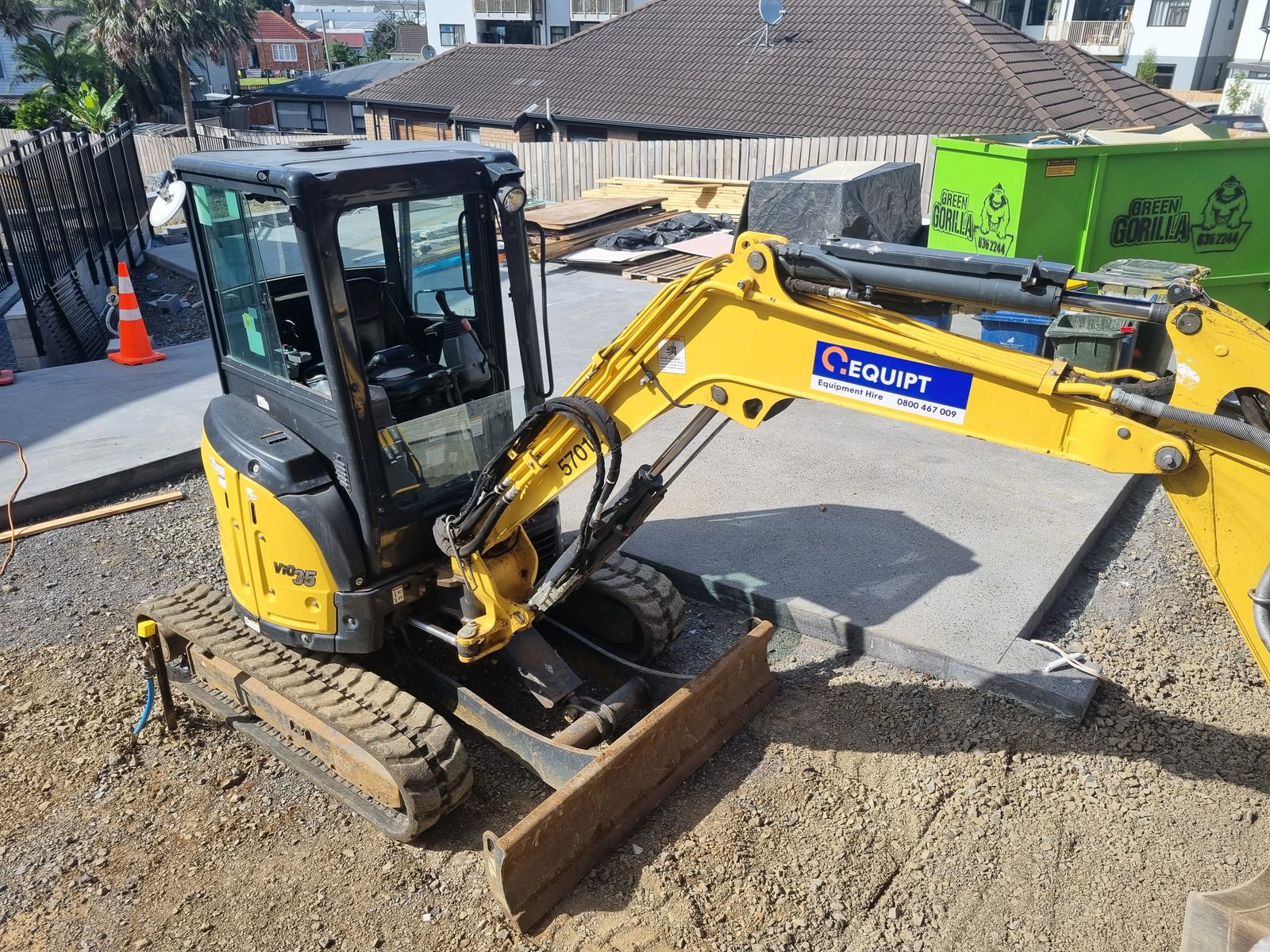

The 3.5 tonne digger is the residential earthworks workhorse — big enough to move real volume on house footings, pool digs, drainage runs and retaining walls, while still working comfortably on established sections. Zero tail swing across the class means tight-spot slewing without drama.
We run the Yanmar ViO35-6B and Kubota U35-4 in this class — reliable, operator-friendly machines digging to around 3.1 m with strong breakout force. At around 1.7 m wide they fit most double-gate and driveway access, and they’re a clear productivity jump over the smaller classes when there’s real dirt to shift.
If access is tight, look at the 2.5T or 1.7T; if you’re doing a full site cut, our 5.5T class is the next step. All machines come with buckets and attachments to suit, delivered fast anywhere in Auckland. Call 0800 467 009 for advice on the right size digger for your job.
