16m Electric Boom Lift
Features
- Zero emissions — safe indoors
- Non-marking tyres
- Up-and-over knuckle reach
- Low hour, late model
- Certified & regularly serviced
- Auckland-wide delivery
Models in our fleet
You'll get one of these — all low-hour, serviced and safety-checked.

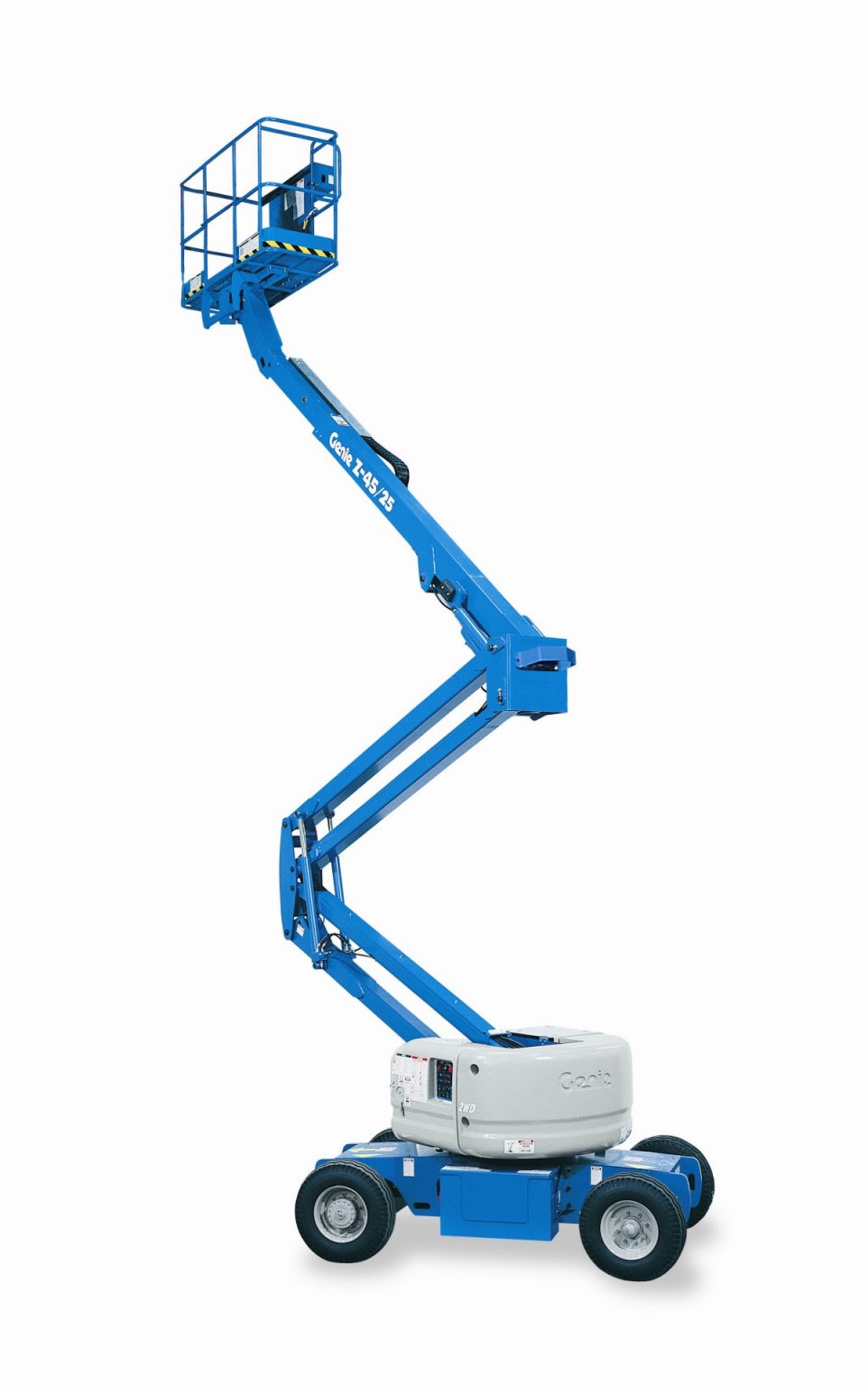

Genie Z-45/25J DC Electric Knuckle Boom
Z-45/25J electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban jobsites. For increased versatility it features a rotating jib offering industry-leading horizontal rotation as well as standard vertical reach. Narrow dimensions make it easy to drive through standard doorways, to work around obstacles and access overhead tasks from aisles or areas where space is limited.
| Working height maximum | 15.92 m |
|---|---|
| Platform height maximum | 13.92 m |
| Horizontal reach maximum | 7.65 m |
| Platform length | 0.76 m |
| Platform width | 1.83 m |
| Machine Weight | 7,394 kg |
| Height - stowed | 2.00 m |
| Length - stowed | 6.83 m |
| Width | 1.79 m |
| Wheelbase | 2.03 m |
| Ground clearance | centre 0.24 m |
| Lift capacity | 227 kg |
| Platform rotation | 160° |
| Turntable rotation | 355° non-continuous |
| Turntable tailswing | zero |
| Drive speed - stowed | 4.8 km/h |
| Drive speed - raised | 1.1 km/h |
| Gradeability - stowed | 30% |
| Controls | 24 V DC proportional |
| Tyres | solid non-marking |
| Power source | 48 V DC (eight 6 V batteries 350 Ah capacity) |
| Auxiliary power unit | 24 V DC |
| Hydraulic tank capacity | 30.3L |
Hire a 16m working height electric knuckle boom in Auckland — zero-emission up-and-over access for indoor and urban sites. Call 0800 467 009.
When you need real boom reach without an engine running, the 16m electric knuckle boom is the machine. Our Genie Z-45/25J DC reaches a 15.9 m working height (13.9 m platform) with 7.65 m of horizontal outreach — all on quiet, emission-free 48V battery power that suits sensitive, congested and urban job sites, from warehouses and malls to hospitals and food facilities.
The articulating geometry and rotating jib give industry-leading placement around obstacles, while narrow dimensions, zero tail swing and solid non-marking tyres let it drive through standard doorways and work on finished floors without damage. It covers maintenance, services installation, painting and cladding work that diesel booms can’t do indoors. For lower-level indoor reach the 12m electric boom class is more compact; outdoors on rough ground, our diesel knuckle booms take over.
We deliver anywhere in Auckland. Call 0800 467 009 to check availability and confirm the right boom for your site.
